Artificial Neural Network v2.0

Artificial Neural Network v2.0

Regular price $205.00 USD
Regular price Sale price $205.00 USD
Sale Sold out

ARC ANN v2.0 eurorack synthesizer module

The Artificial Neural Network v2.0 is a collection of submodules for the creation and processing of control voltages, programmable logic, waveshaping, signal conditioning etc.

The Threshold Logic Neuron is capable of patch programmable combinational and sequential logic.  Each input is weighted and may be manually triggered.  v2.0 of the submodule has added a Not Output that goes low when the normal output goes high and vice versa.

The Boolean Logic Neuron is inspired by the Dual Logic Unit of the EAB video synthesizer.

Also included is a useful utility submodule: Dual Schmitt Trigger whose outputs are fed to an And Gate.

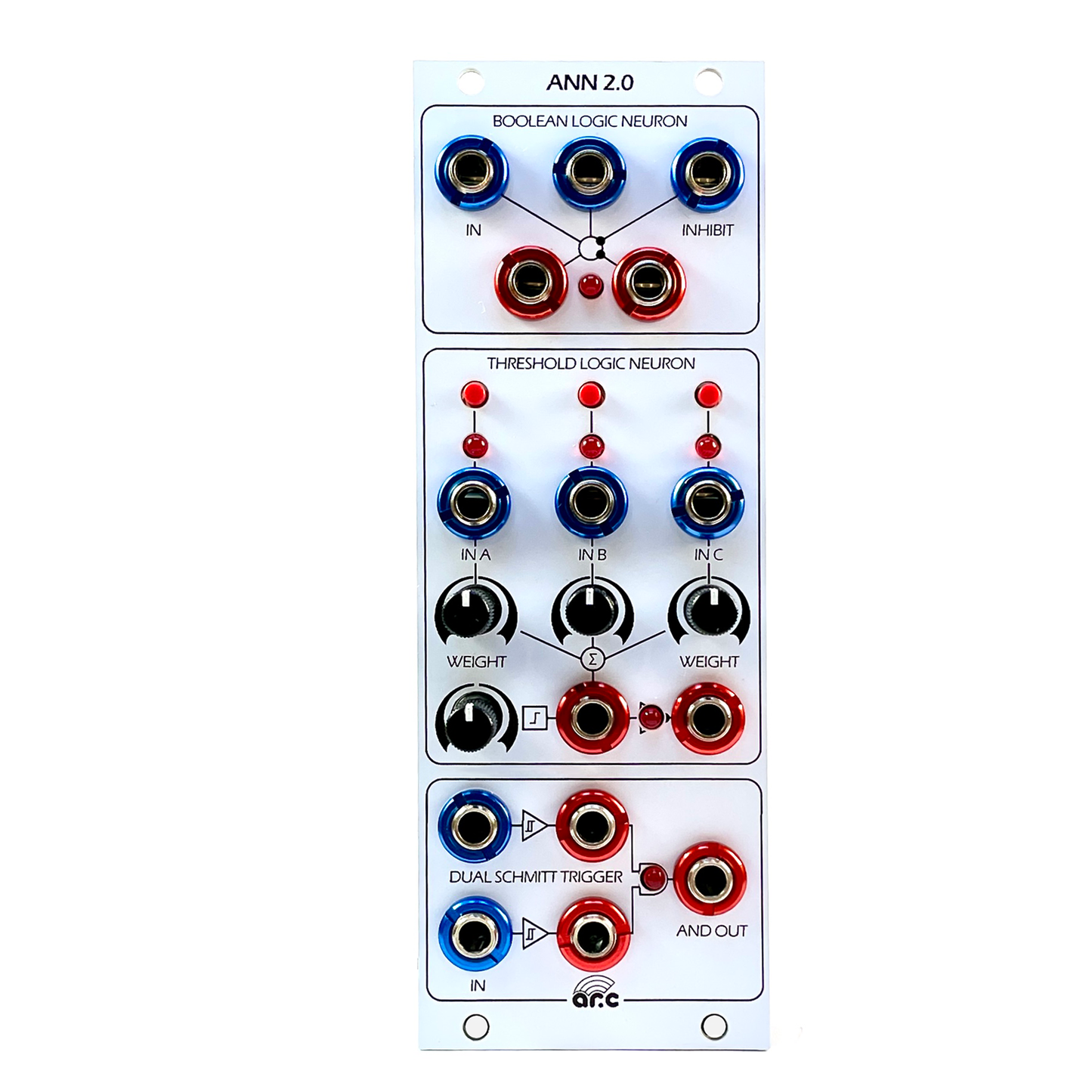

For v2.0 the panel is white aluminium with colour anodized nuts on the jacks, plain jack nuts are also included with module if you wish to swap them out.  Version 2.0 is also half the width of the original, making it more friendly for smaller systems.

Specifications:

Module Width 9hp
Mounting Depth 26mm
Current Draw 20mA idle - 60mA all LEDs lit (+12V)
  0mA (-12V)
